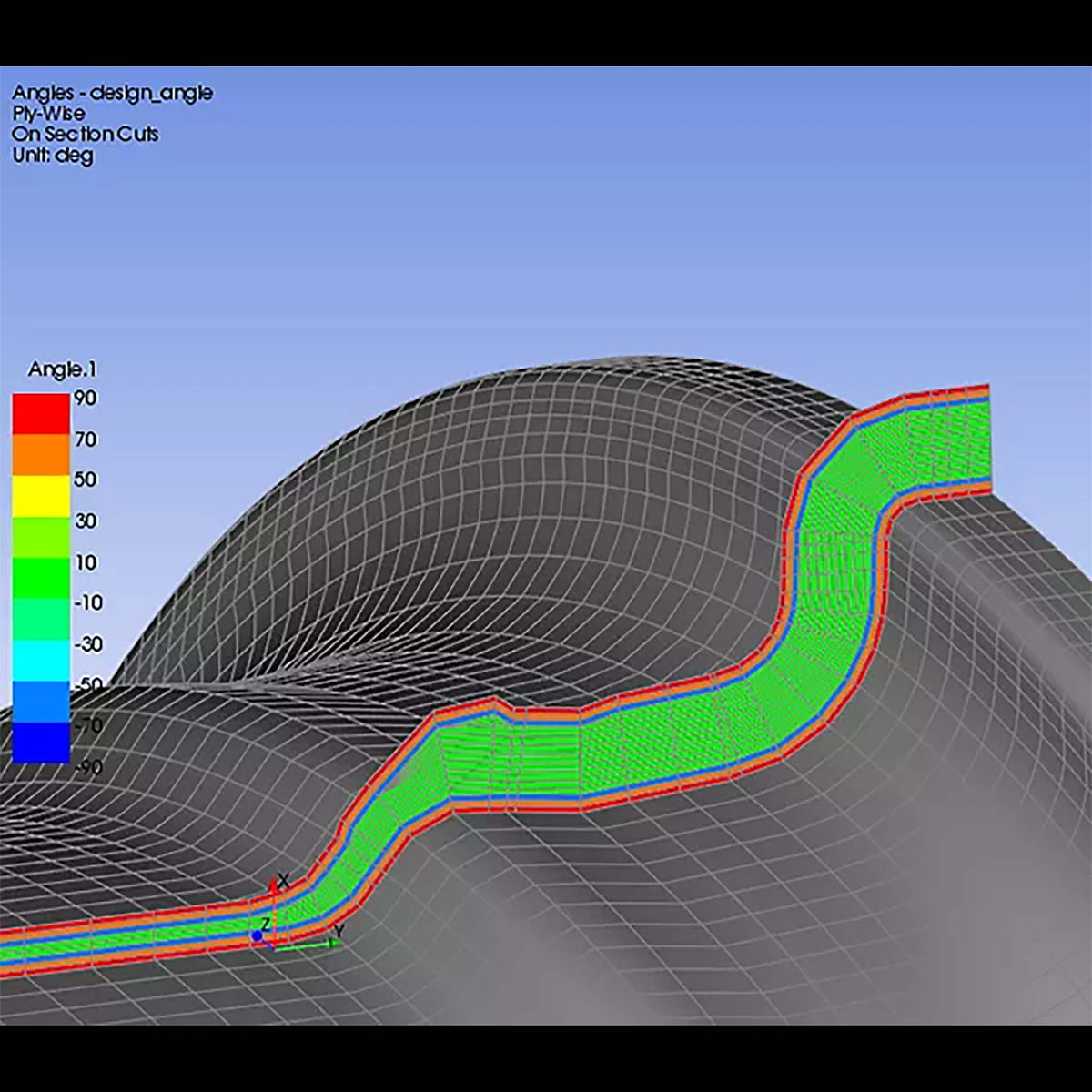

FEA 207 - Ansys ACP Complete Composites Solution Training

Advanced Level Training - 2 days (16 hours)

About Ansys ACP Complete Composites Solution Training by CADIT

Design and analyze layered composite structures with Ansys Composite PrepPost (ACP): fiber orientation, oriented selection sets, ply and solid modelling, First Ply Failure analysis, and parametric optimization of high-fidelity composite models.

Perfect for Engineers designing and analyzing layered composite structures.

Learning Outcomes

By the end of this training, you will be able to:
1. Create complex shell and solid composite models with correct fiber orientation and lay-up definitions.
2. Perform finite element analysis and postprocess composite-specific results, including failure criteria.
3. Develop parametric studies to evaluate the impact of design variables such as ply count and fiber orientation on structural behavior.

Course Content

1. Course Overview and ACP Introduction
2. Oriented Selection Sets
   - Create multiple Rosettes and understand the concept of OSS
3. Edge Sets and Rules
   - Specify mesh-independent layups that meet the specific requirements of your design
4. Ply Modelling
   - Demonstrates how to use ply modelling
5. Solid Modelling
   - Use ACP to create solid composite models and understand when they are required
6. Failure Criteria and Post-Processing
   - Understand First Ply Failure (FPF) analysis in ACP-Post
7. Parameters
   - Use the Ansys Workbench platform for associative, fast design iterations and optimization

HRDCorp Claimable Ansys ACP course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
