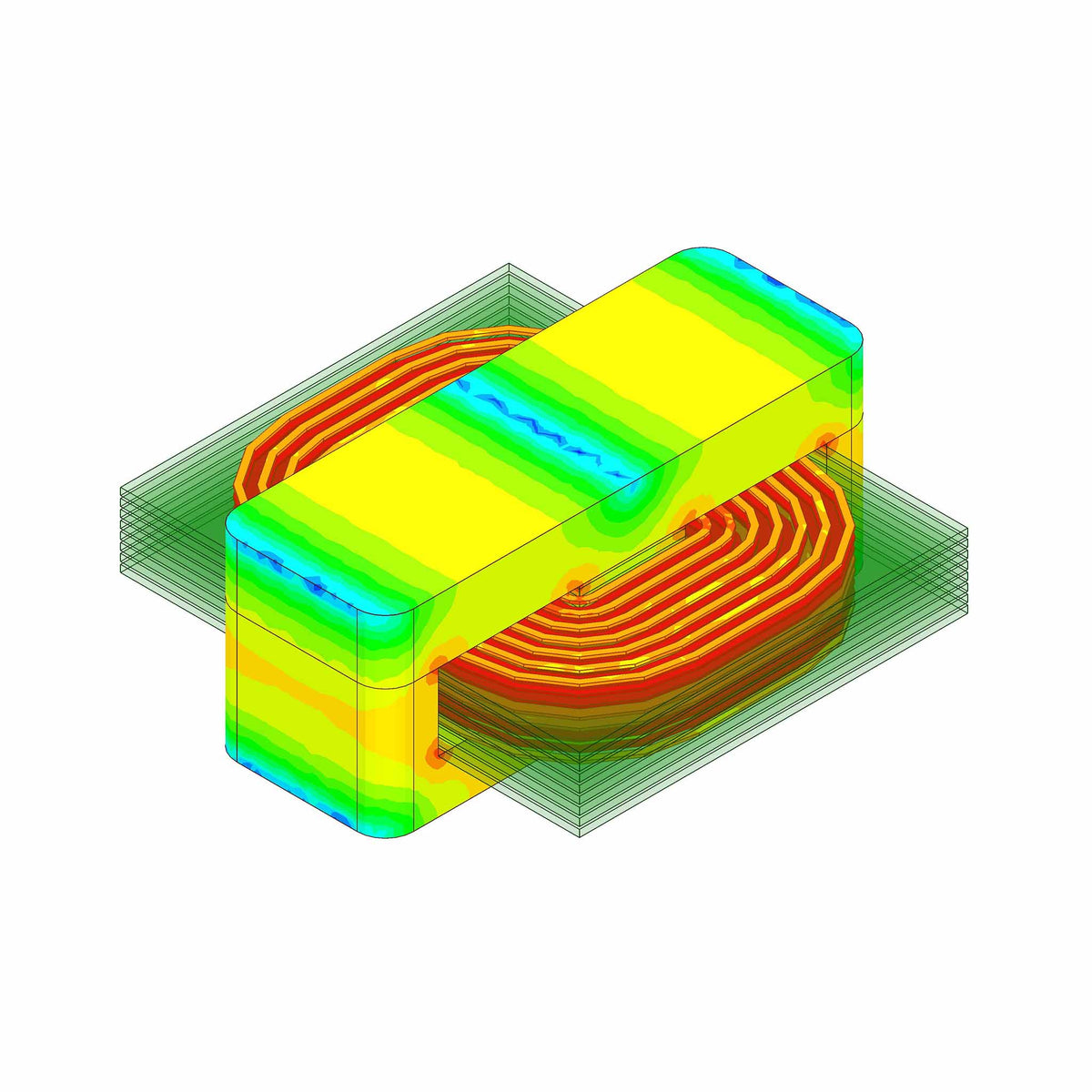

EMLF 206 - Ansys Electronics Suite Electronic Transformers Training

Advanced Level Training - 2 days (16 hours)

About Ansys Electronics Suite Electronic Transformers Training by CADIT

In-depth training in modelling multi-winding electronic transformers using Ansys Maxwell, Simplorer, and thermal tools such as Mechanical or Icepak. Covers FE simulation, parameter extraction, transient analysis, and electromagnetic-thermal co-simulation.

Perfect for Engineers designing multi-winding electronic transformers.

Learning Outcomes

By the end of this training, you will be able to:
Learning Outcome By the end of this training, you will be able to:
1. Generate transformer models with PEmag and Electronic Transformer ACT for Ansys Maxwell simulations.
2. Run various simulations in Ansys Maxwell, including eddy current and electrostatic.
3. Build and simulate full system models in Ansys Simplorer, integrating PEmag netlists or Maxwell ROMs with capacitance matrices.
4. Execute 2-way coupled simulations between Ansys Maxwell 3D Eddy Current and Ansys Icepak in the AEDT environment.
5. Set up thermal-electromagnetic coupling between Ansys Maxwell 3D Eddy Current and Ansys Mechanical/Thermal using Ansys Workbench.

Course Content

1. Transformer Model Generation
   - Utilize PEmag and Electronic Transformer
   - ACT to generate transformer models for Ansys Maxwell simulation.
   2. Maxwell Simulation Setups
   - Set up and run simulations in Ansys Maxwell for:
   - Eddy Current Design
   - Electrostatic Design
   - Transient Design
   - . System-Level Simulation
   - Develop and simulate a complete Ansys
   - Simplorer system model using:
   - PEmag Netlist
   - Maxwell Eddy Current (R,L) Reduced
   - Order Model (ROM)
   - Maxwell Electrostatic (Capacitance)
   - Matrix
   3. Thermal and Electromagnetic Coupled
   - Simulations
   - Set up and simulate Ansys Maxwell 3D
   - Eddy Current with Ansys Icepak using AEDT 2-way coupling.
   - Set up and simulate Ansys Maxwell 3D
   - Eddy Current with Ansys Thermal using 2-way coupling via Workbench

HRDCorp Claimable Ansys Electronics Suite course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
