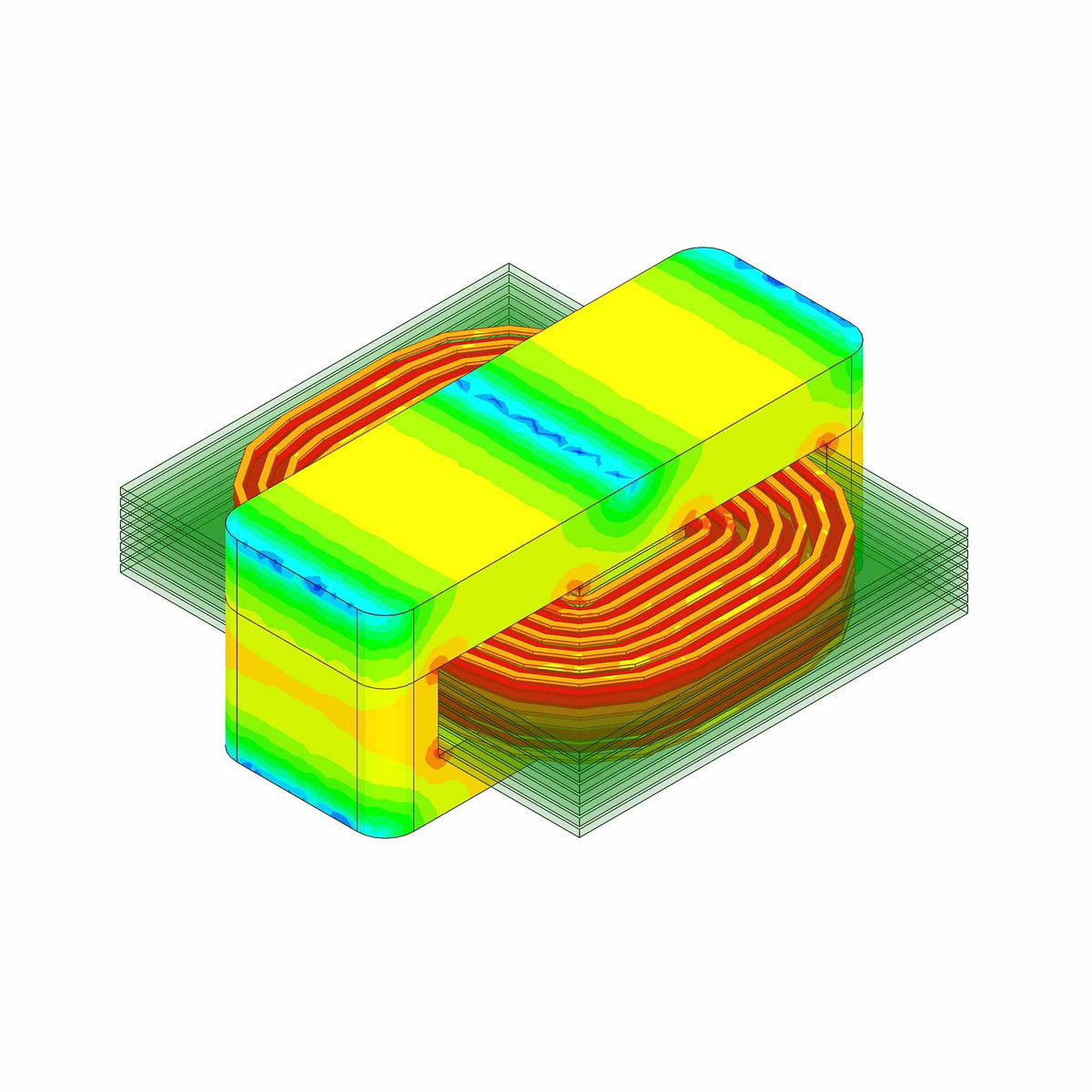

EMLF 101 - Ansys Maxwell Introduction Training

Beginner Level Training - 2 days (16 hours)

About Ansys Maxwell Introduction Training by CADIT

Introduction to low-frequency electromagnetic simulation with Ansys Maxwell for motors, transformers, actuators, sensors, and wireless charging. Covers Magnetostatic, Eddy Current, Electrostatic, and Transient solvers through guided workshops.

Perfect for Engineers designing low-frequency electromagnetic devices.

Learning Outcomes

By the end of this training, you will be able to:
1. Set up 2D and 3D simulations in Ansys Maxwell, including boundary conditions, excitations, mesh settings, and output parameters (e.g., force, inductance, matrices).
2. Differentiate between static solvers: AC/DC Conduction, AC Magnetic, Magnetostatic, Magnetic Transient, and Electrostatic.
3. Use Magnetic/Electric Transient solvers with motion, custom excitations, and loss models.
4. Perform parametric sweeps for design variation and optimization.
5. Generate and interpret simulation results using 2D plots and field visualizations on geometry.

Course Content

1. Introduction & Interface
   - Overview of Maxwell and its applications
   - Navigating Ansys Electronics Desktop (AEDT)
   2. Model Setup
   - Geometry creation/import
   - Material assignment
   - Boundary conditions and excitations
   3. Solver Types
   - Introduction to solvers (Magnetostatic, Electrostatic, AC Magnetic, AC Conduction, & Transient)
   4. Simulation & Meshing
   - Mesh setup and control
   - Motion, losses, and parameter setup
   5. Post-Processing
   - Field plots and performance charts
   - Force, torque, inductance analysis
   6. Parametric Analysis
   - Design variables and sweep studies

HRDCorp Claimable Ansys Maxwell course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
