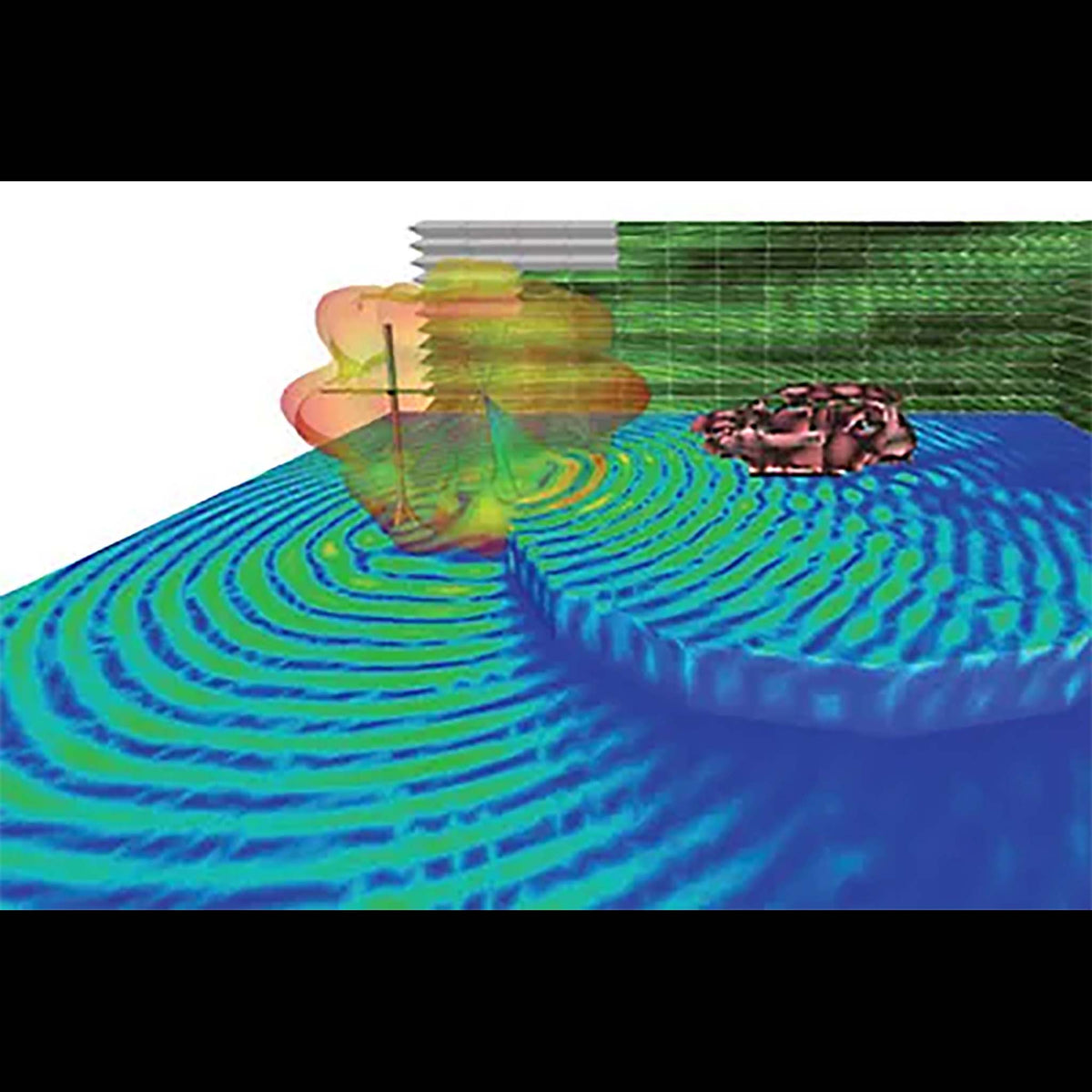

EMHF 201 - Ansys HFSS EMI/EMC Simulation (CISPR 25) Training

Advanced Level Training - 2 days (16 hours)

About Ansys HFSS EMI/EMC Simulation (CISPR 25) Training by CADIT

Comprehensive introduction to CISPR 25 EMC/EMI compliance workflows using Ansys HFSS, Electronics Desktop Circuit, HFSS 3D Layout, and SIwave. Hands-on exercises cover simulation setup, SI/PI analysis, and result interpretation for standards compliance.

Perfect for Engineers and designers seeking EMC/EMI compliance early in design.

Learning Outcomes

By the end of this training, you will be able to:
1. Edit schematic symbols, generated by EM blocks brought into Ansys Electronics Desktop (AEDT) Circuit, including size, graphic, and pin configuration.
2. Set up HFSS and SIwave EM blocks in circuit schematics and drive with transient signals.
3. Set up workflows with a combination of products, like SIwave, HFSS 3D Layout, HFSS fully arbitrary 3D (FA3D), and AEDT Circuit.
4. Set up PCB (printed circuit board) field simulations directly from the PCB or indirectly from the near fields generated by the PCB.
5. Generate frequency field reports of voltage measured at antennas, with both simulated antenna hardware and with simple sensing objects.
6. Import CISPR 2008 standard templates to overlay on plots.
7. Know how PCB field behaviors can be simulated with CISPR chamber rooms that include EM absorbers.

Course Content

1. CISPR25 CE Local Ground
2. CISPR25 CE Remote Ground
3. RE CISPR25 Chamber
4. RE SIwave NF Datalink HFSS Cables

HRDCorp Claimable Ansys HFSS course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
