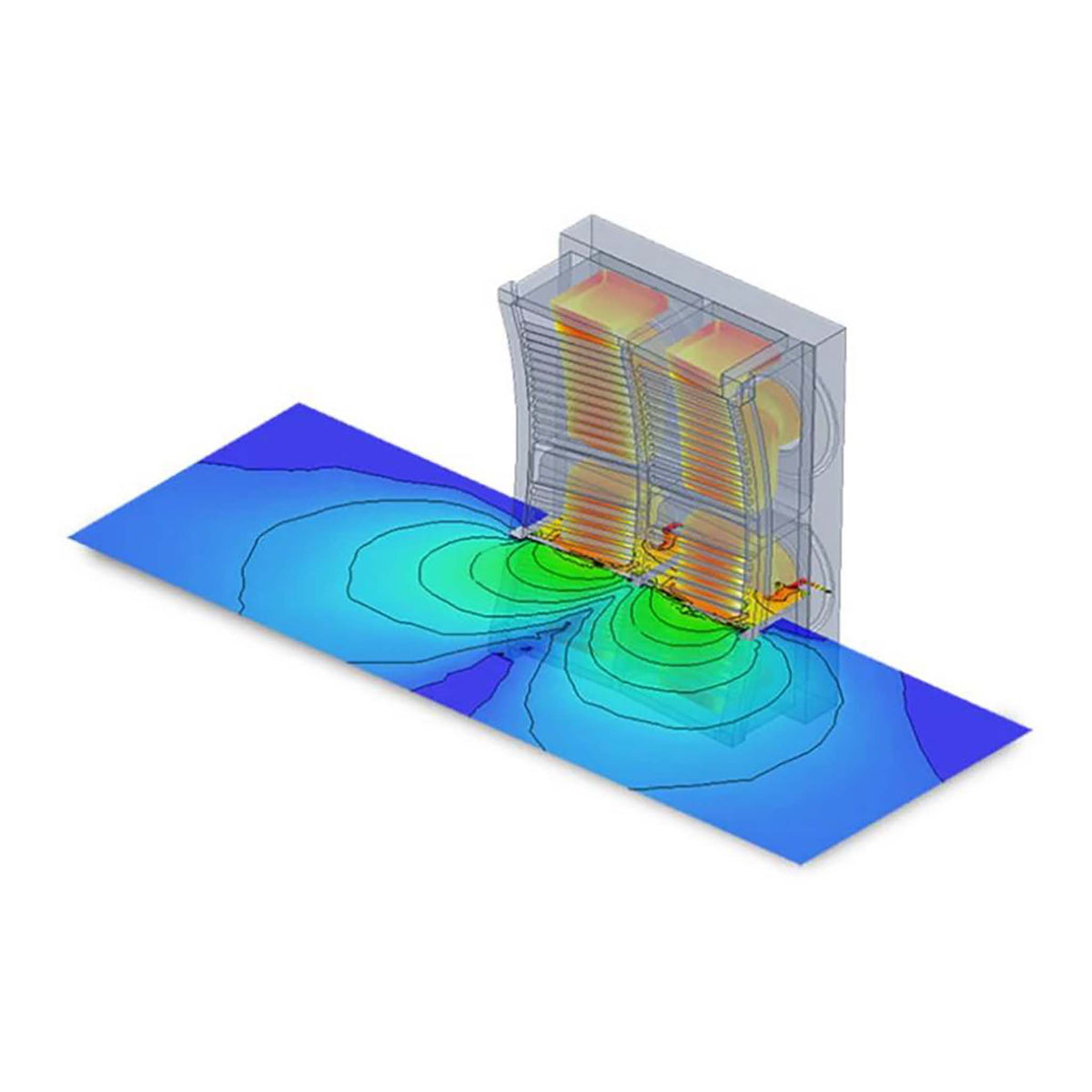

EMHF 101 - Ansys HFSS Introduction Training

Beginner Level Training - 1 day (8 hours)

About Ansys HFSS Introduction Training by CADIT

Introduction to Ansys HFSS 3D electromagnetic simulation for antennas, RF/microwave circuits, and high-speed interconnects. Covers model setup, materials, boundary conditions, excitations, meshing, frequency sweeps, S-parameters, and field visualization.

Perfect for RF, microwave, and high-speed design engineers.

Learning Outcomes

By the end of this training, you will be able to:
1. Navigate the Ansys Electronics Desktop (AEDT) interface
2. Set up, run, and analyze HFSS simulations
3. Understand HFSS FEM-based adaptive meshing
4. Distinguish between lumped and wave ports
5. Define simulation space and boundaries
6. Build simple 3D models in AEDT
7. Perform and plot a basic parameter sweep

Course Content

1. Introduction
   - Overview of Ansys & Ansys Electronics Desktop (AEDT)
   - Introduction to HFSS and Finite Element Method (FEM)
   2. Core Concepts & Simulation Setup
   - Boundaries & Simulation Space
   - Solution Setup
   - Lumped vs. Wave Ports
   - Parameterized Geometry
   - HPC and Optimetrics Basics
   3. Hands-On Workshops
   - Coaxially-fed Band Pass Filter
   - Patch Antenna with Open Region
   - Boundary
   - SMA-Microstrip Stub Simulation
   - Patch Antenna: S-Parameters & Fields
   - Microstrip Bend Geometry & Port Setup
   - Parameter Sweep Analysis
   4. Post-Processing & Results
   - S-parameters, field plots, and performance metrics

HRDCorp Claimable Ansys HFSS course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
