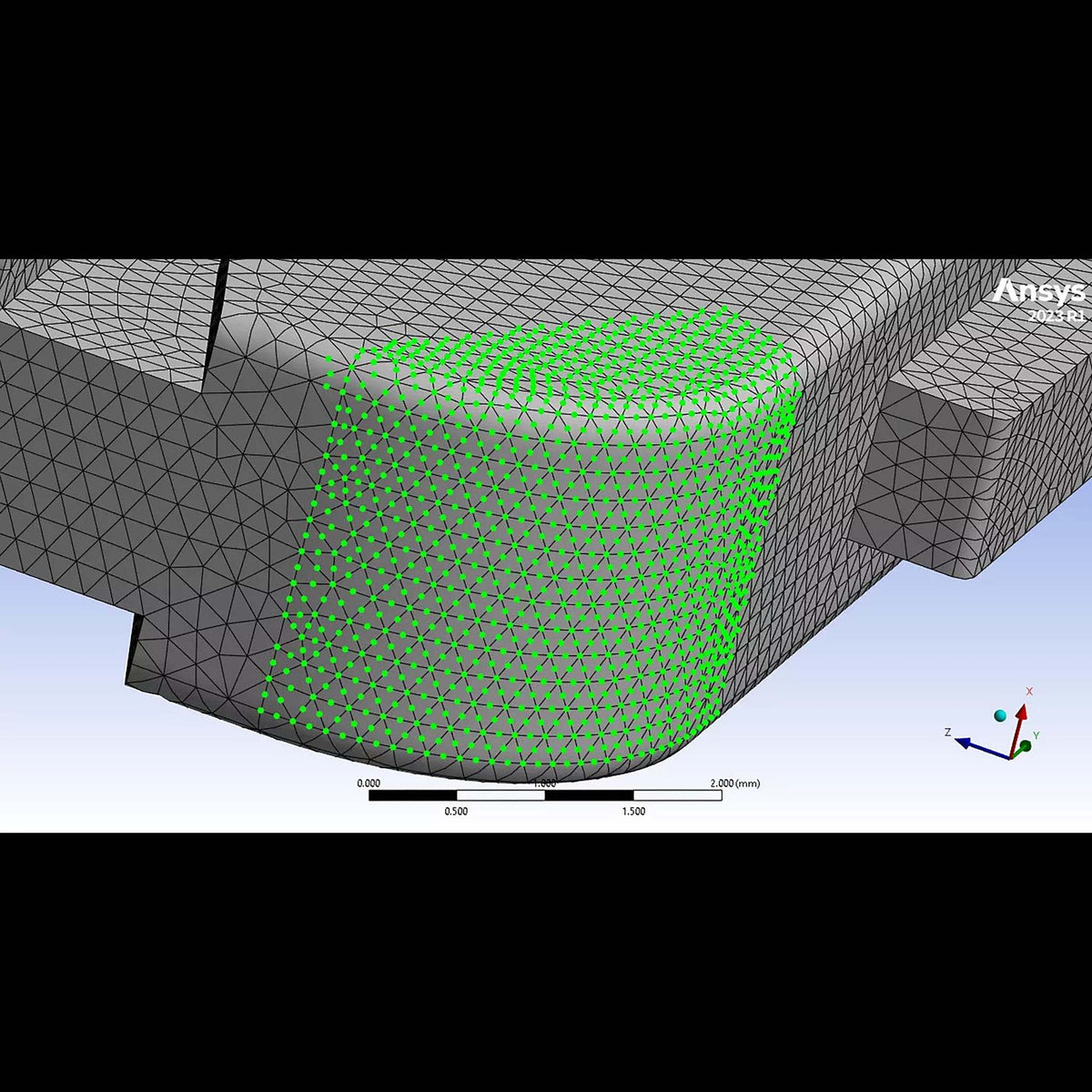

CFD 206 - Ansys Fluent CFD Dynamic Mesh Modelling Training

Advanced Level Training - 2 days (16 hours)

About Ansys Fluent CFD Dynamic Mesh Modelling Training by CADIT

Training in dynamic mesh techniques in Ansys Fluent for moving boundaries and deforming geometries — valve motion, piston-cylinder systems, flapping wings, and FSI. Covers rigid body motion, deforming zones, remeshing strategies, validation, and troubleshooting.

Perfect for Engineers and analysts simulating moving or deforming geometry.

Learning Outcomes

By the end of this training, you will be able to:
1. Understand the fundamental concepts of dynamic mesh modelling, including mesh motion, deformation, remeshing, and mesh quality preservation.
2. Identify appropriate dynamic mesh strategies for various types of motion (rigid body motion, deforming boundaries, valve motion, piston motion, etc.).
3. Set up dynamic mesh zones in ANSYS Fluent using smoothing, layering, remeshing, and overset mesh techniques

Course Content

1. Introduction to Dynamic Mesh
   2. General overview MDM process
   3. Layering‒ Remeshing by adding/removing cell layers
   4. Smoothing‒ Mesh deformation by moving nodes
   5. Remeshing‒ Remeshing by splitting/collapsing
   6. Six degrees of freedom‒ Calculate movement as reaction to forces

HRDCorp Claimable Ansys Fluent course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
