CFD 205 - Ansys Fluent CFD Rotating Machinery Training

Advanced Level Training - 2 days (16 hours)

About Ansys Fluent CFD Rotating Machinery Training by CADIT

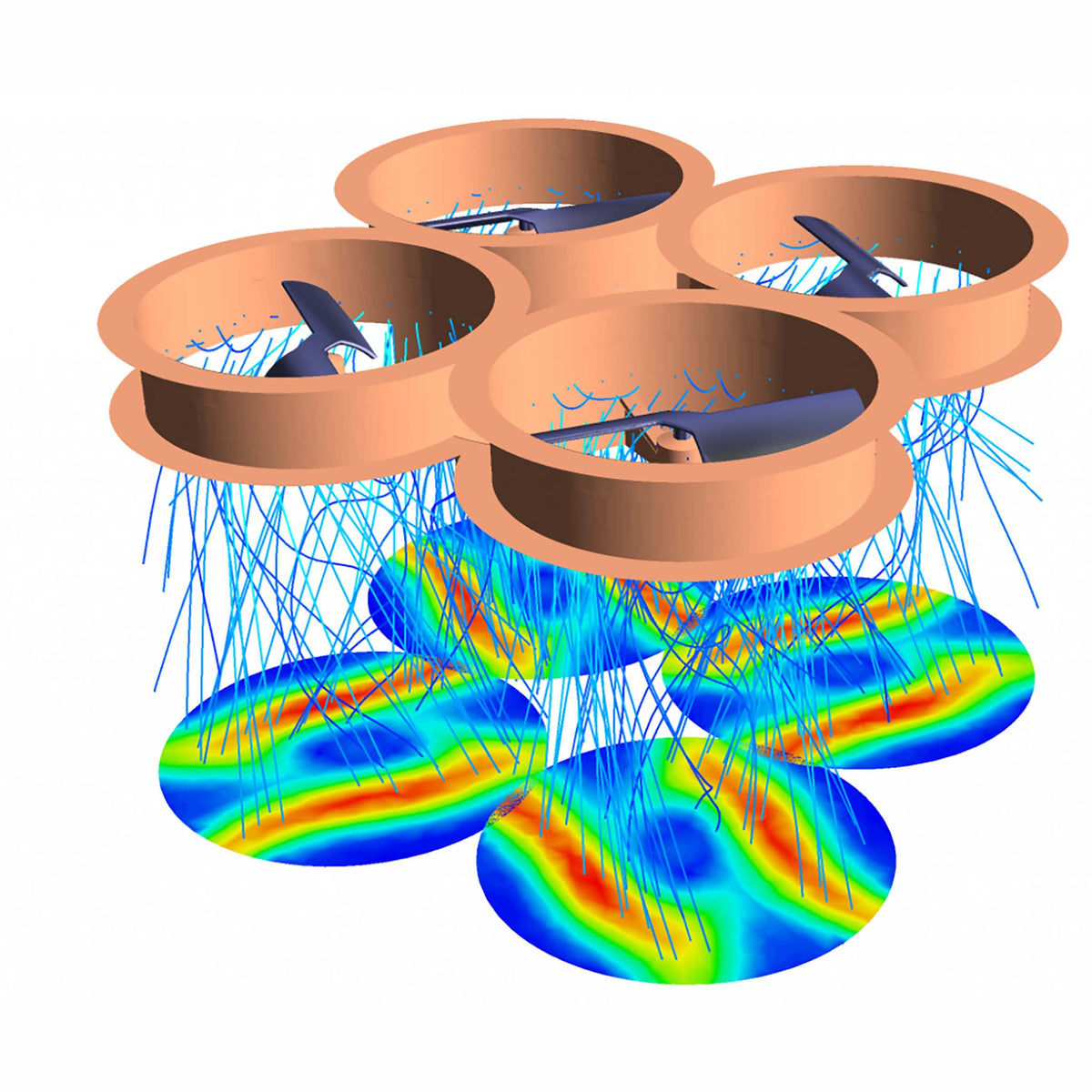

Model and analyze fluid flow in rotating systems with Ansys Fluent using Moving Reference Frame (MRF), Sliding Mesh and Transient Rotor-Stator interfaces, covering centrifugal and axial flows, blade passage analysis and performance prediction.

Perfect for Engineers and simulation professionals modelling rotating systems.

Learning Outcomes

By the end of this training, you will be able to:
1. Understand the fundamentals of rotating machinery flow physics, including rotating frames of reference, swirl, secondary flows, and rotor–stator interactions.
2. Select and apply the correct modeling approaches for rotating systems, including Moving Reference Frame (MRF), Sliding Mesh (SM), Multiple Reference Frames, and Dynamic Mesh methods.
3. Set up rotating machinery simulations in Ansys Fluent, including boundary conditions, material properties, turbulence models, and solver settings.

Course Content

1. Introduction to Rotating Machinery
   2. Moving Zone Theory
   3. Single Zone Modelling
   4. Post-processing
   5. Multiple Zone Modelling – Frozen Rotor + Mixing Plane
   6. Multiple Zone Modelling – TRS + Sliding mesh
   7. Best Practices

HRDCorp Claimable Ansys Fluent course

Certificate of completion provided. If based in Malaysia, this course can be reimbursed with the HRDCorp Program through our certified trainers.
